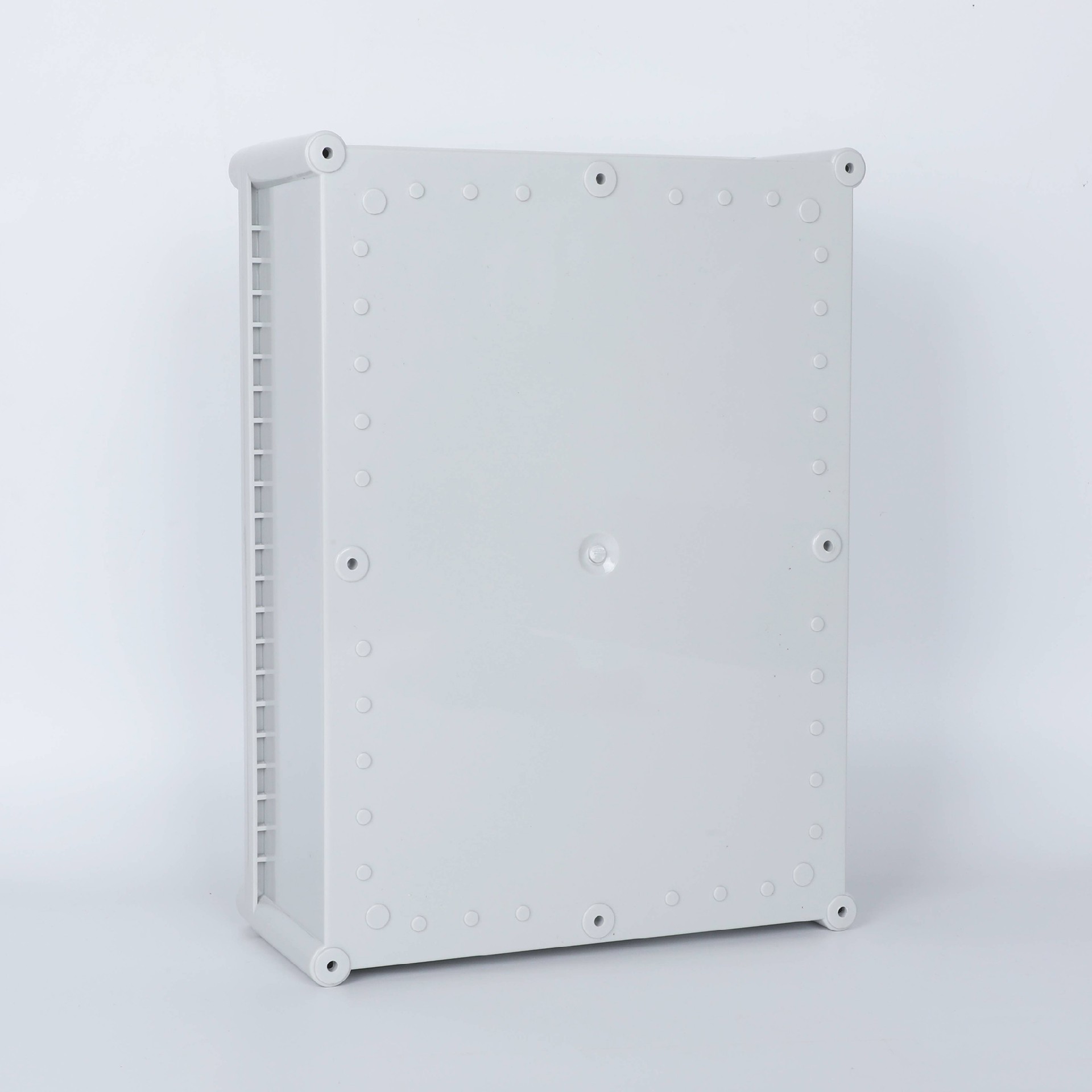

The product is a medium-sized electrically sealed box. The product is made of polycarbonate PC and ABS, and it is a beautiful individual sealed box. This series of products is available with a basic type of lid screws and a stainless steel hinge buckle type. It is also used in the field of solar energy and can be used as a combiner box. The enclosure is IP66/67 protected.
Description | PC (Polycarbonate) | ABS |
Protection Degree (EN 60529) | IP66/IP67 IP65 (FSH) | IP66/IP67 IP65 (FSH) |
Shock resistance (EN 62262) | IK08(side)/IK09(front) | IK08 |
Temp.Range (short-term) | -40°C~120°C | -40C~80°C |
Temp.Range(continuous) | -40°C~80°C | -40°C~60°C |
Insulativity | complete Insulativity | complete Insulativity |
Color (Opaque-light gray part) | RAL 7035 | RAL 7035 |
(Transparent - PC cover part) | Colourless | Colourless |
hinge/buckle color (PC) | RAL 7035 | RAL 7035 |
Gaskets | PUR | PUR |
Flammability rating | UL94-5V | UL 94HB |
Burning wire test (IEC 695-2-1) | 960°C | 650°C |
Nontoxicity | Halogen-free | Halogen-free |
UV resistance test(UV) | UL 508 720 hours in the aging machine | |
Chemical resistance | favorable | favorable |
Model specifications | Dimensions (mm) |
AG-2819130 | 280*190*130 |
AT-2819130 | |
PG-2819130 | |
PT-2819130 | |
AG-2819180 | 280*190*180 |
PG-2819180 | |
AG-2828130 | 280*280*130 |
AT-2828130 | |
PG-2828130 | |
PT-2828130 | |
AG-2828180 | 280*280*180 |
PG-2828180 | |
AG-2834130 | 280*340*130 |
AT-2834130 | |
PG-2834130 | |
PT-2834130 | |
AG-2834180 | 340*280*180 |
PG-2834180 | |
AG-2838130 | 380*280*130 |
AT-2838130 | |
PG-2838130 | |
PT-2838130 | |
AG-2838180 | 380*280*180 |
PG-2838180 | |
AG-3819130 | 380*190*130 |
AT-3819130 | |
PG-3819130 | |
PT-3819130 | |
AG-3819180 | 380*190*180 |
PG-3819180 |
