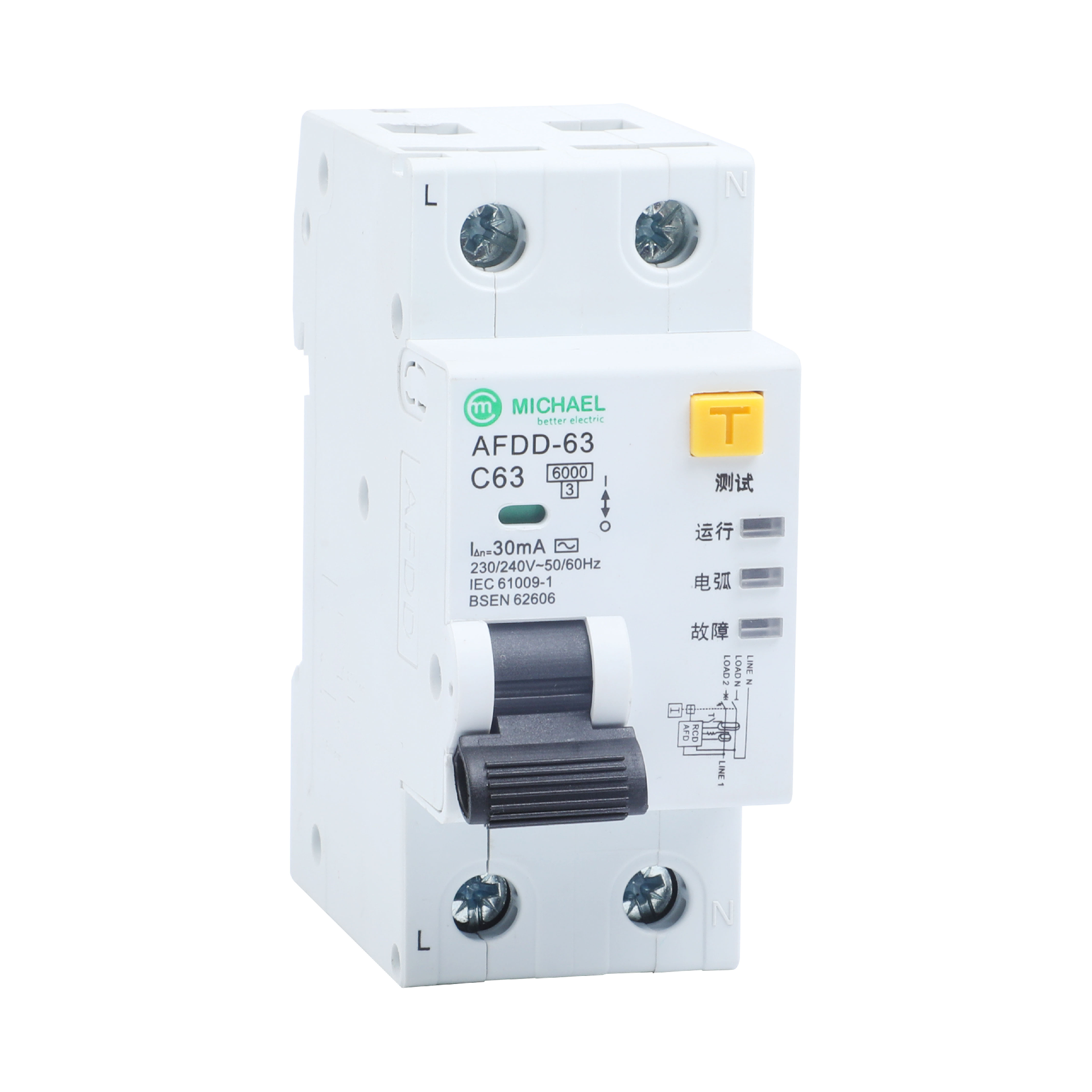

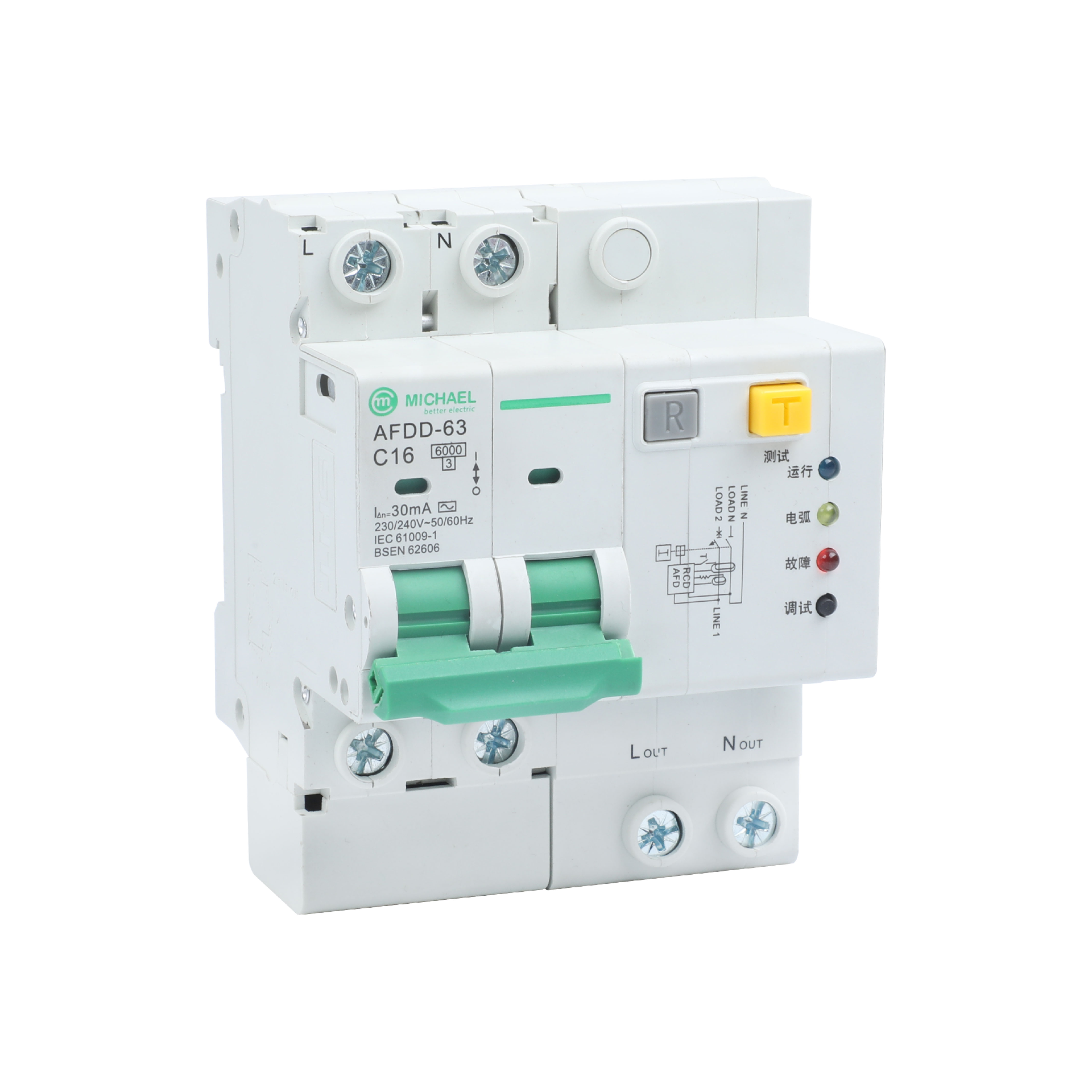

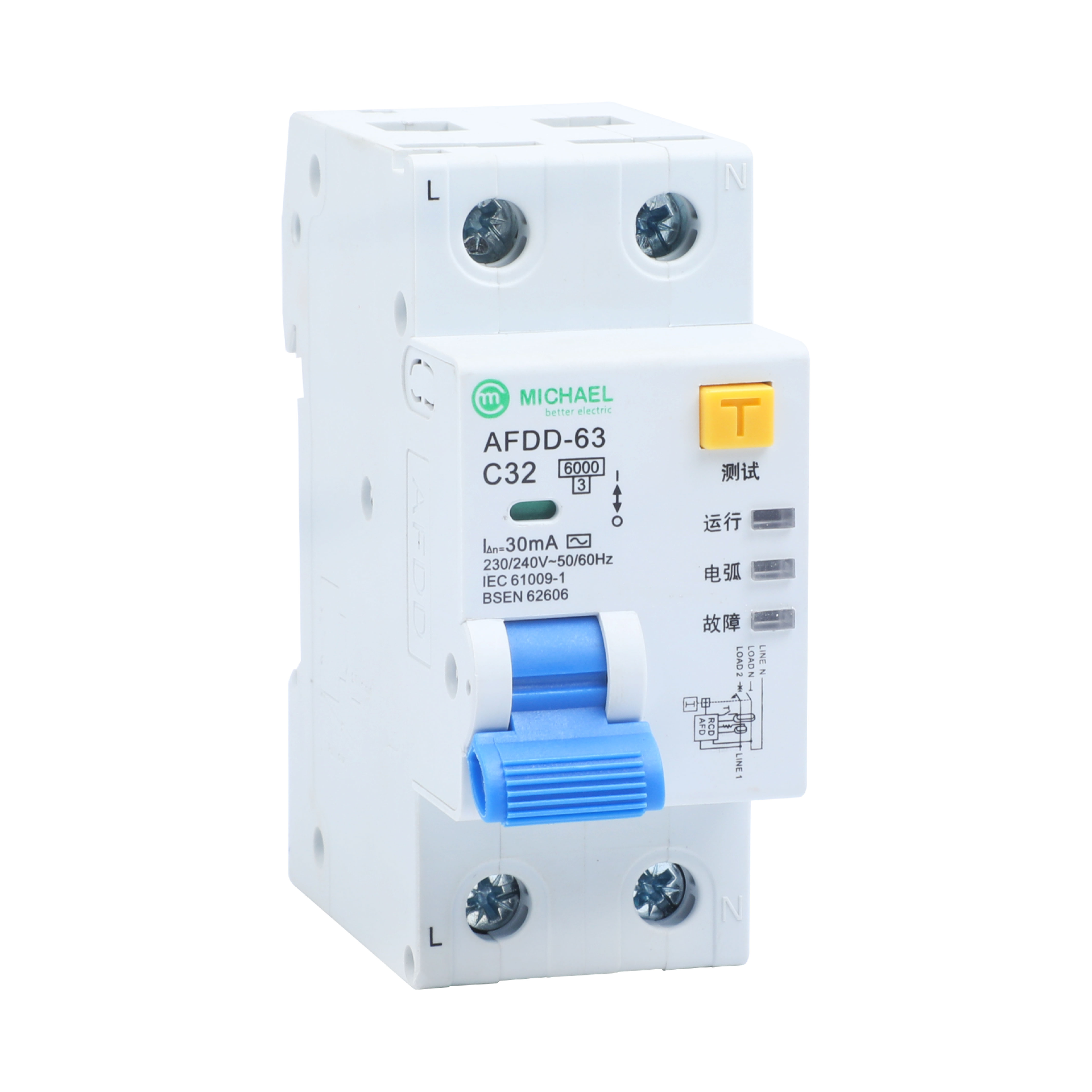

ADDF series of arc fault protection device include leakage protection, fault arc protection, overload protection and short circuit protection functions.
Model No. | AFDD | Rated short circuit capacity (Icn) | 4.5KA |
Rated operating voltage (Ue) | AC230V | Insulation Group | Ⅲa |
Rated operating frequency | 50 HZ±2 per cent | Grid distance (mm) | 40 mm |
Rated insulation voltage (Ui ) | 400V | Rated residual current value | AC 30mA |
Rated impulse withstand voltage (Uimp) | 4 KV | Short circuit capability (Ics) | 4.5KA |
Rated current (In) | 6A ,10A ,16A ,20A ,25A ,32A ,40A ,50A ,63A | Type of instantaneous release | C |
