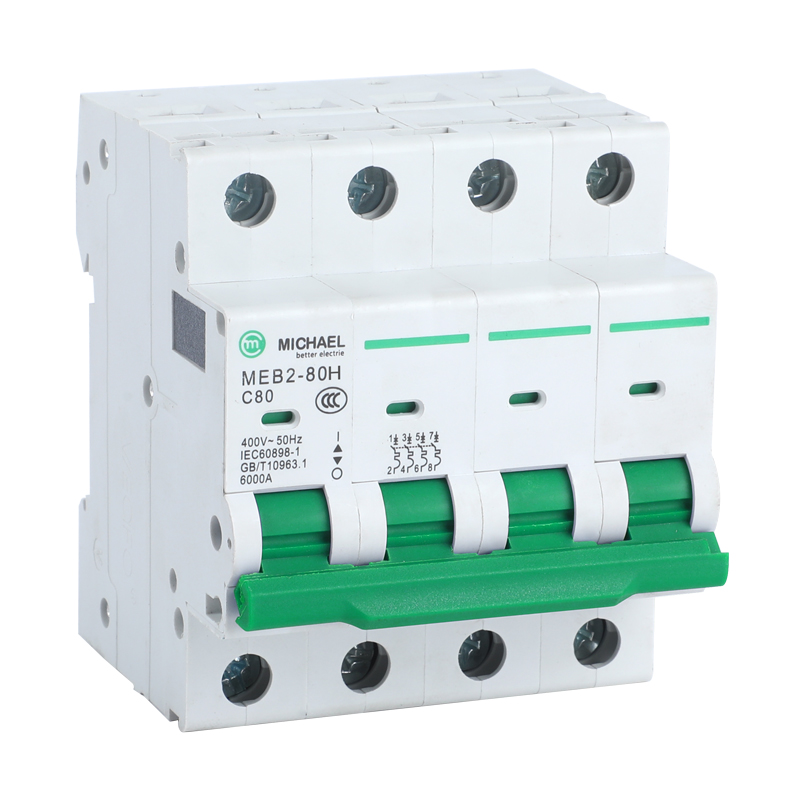

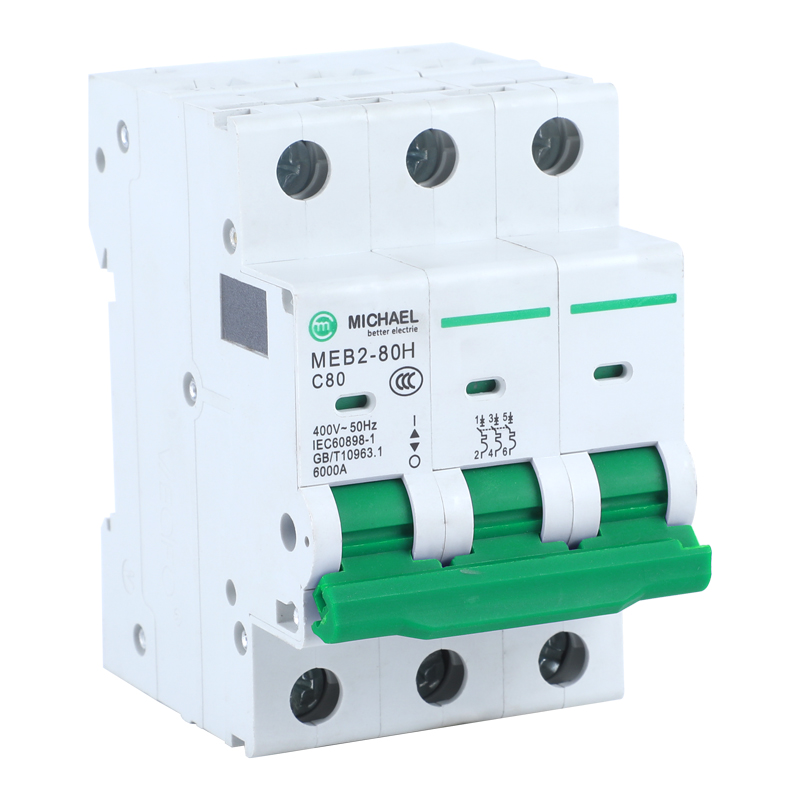

MEB2-80H Miniature Circuit Breakers with 6kA breaking capacity was designed to provide protection against short circuit and overload for domestic,commercial and industrial electrical installations.
Model No. | MEB2-80H | Electrical life | 8000times |
Standards | IEC60898-1 | Mechanical life | 20000times |
Approvals: | CE,CB, | Ambient temperature | -5~+40 |
Number of poles | 1P+N,3P+N | Maximum humidity | 95 % |
Rated currents | 1A, 2A, 3A, 4A) 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,80A | Altitude | Maximum 2000 meters |
Rated voltate | 120V,230V, 240V, 230 / 240V (1P); 400 / 415V (2P/3P/4P) | Degree of protection | IP20, with connected conductors |
Rated insulation voltage | 500V | Terminal tightening torque | 3 N • m |
Rated frequency (Hz) | 50/60 | Thermal operating limit (In) | Thermal operating limit (In) |
Solid and stranded (mm2 | 0.75-35 | Finely stranded with end sleeve (mm2) | 0.75-25 |
