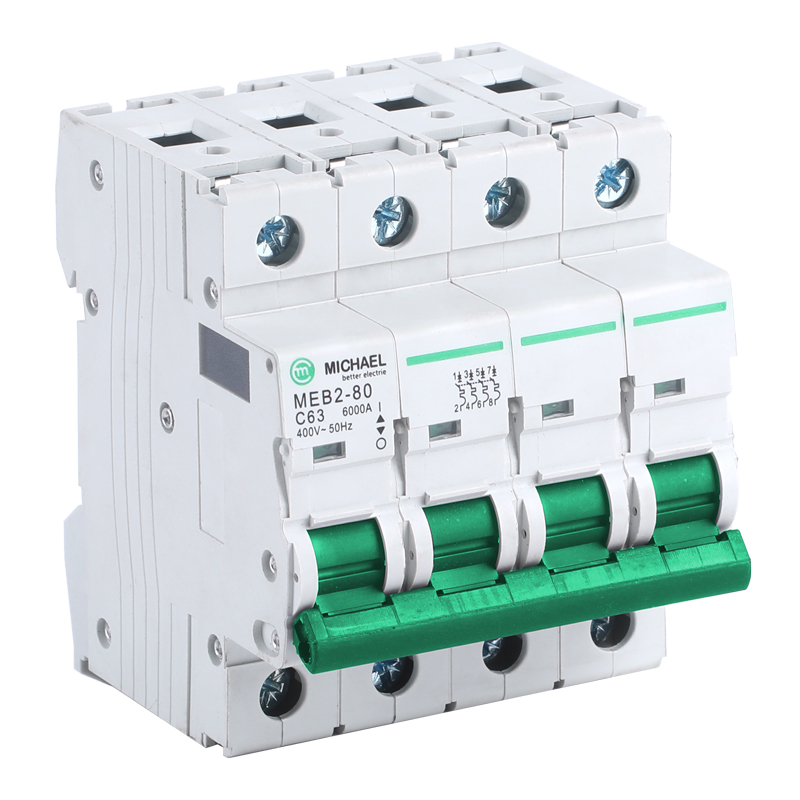

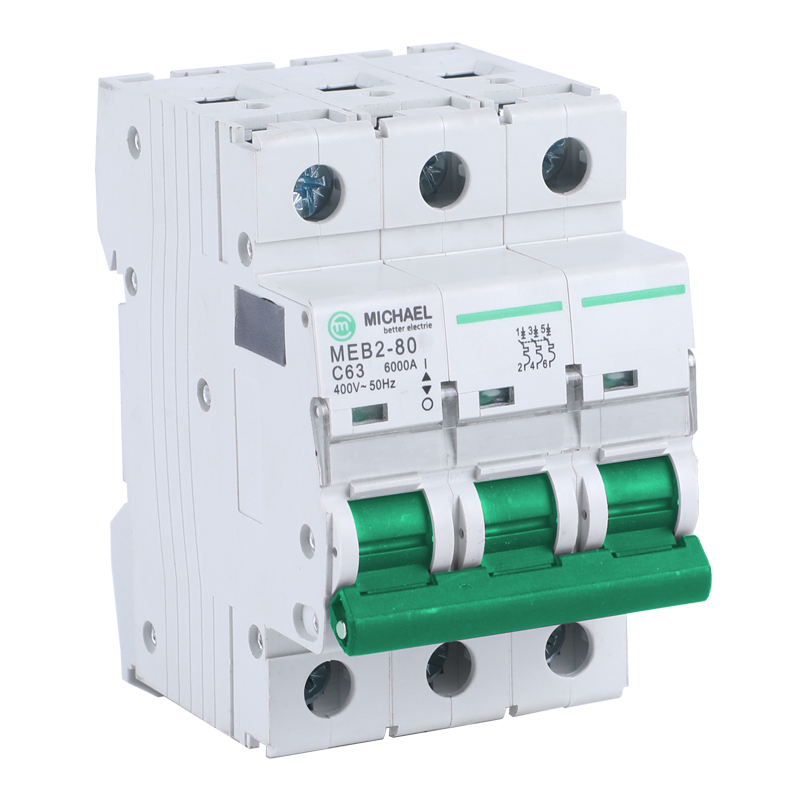

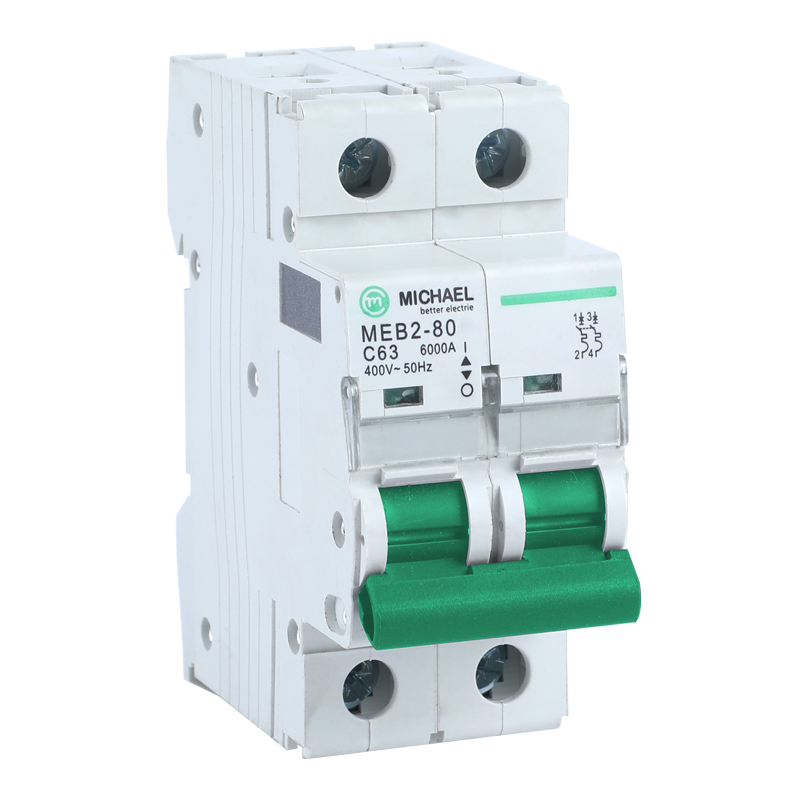

MEB2-80 Miniature Circuit Breakers with 6kA breaking capacity was designed to provide protection against short circuit and overload for domestic,commercial and industrial electrical installations.
| Standards | IEC 60898-1 | Tripping Curve | B,C,D |
| Certifications | CE,CB,SAA | Electrical life | 10000times |
| Number of poles | 1P,2P,3P,4P | Mechanical life | 20000times |
| Rated Currents | 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63,80A | Ambient temperature | -25℃~ +45℃， max. 95 % humidity |
| Rated Voltate | 230/400V | Degree of protection | IP20 |
| Rated insulation voltage | 500V | Terminal torque | 3.5 N • m |
| Breaking Capacity | 6kA | Terminal capacity | Solid and stranded : 0.75-35mm2 Finely stranded with end sleeve: 0.75-25mm2 |
