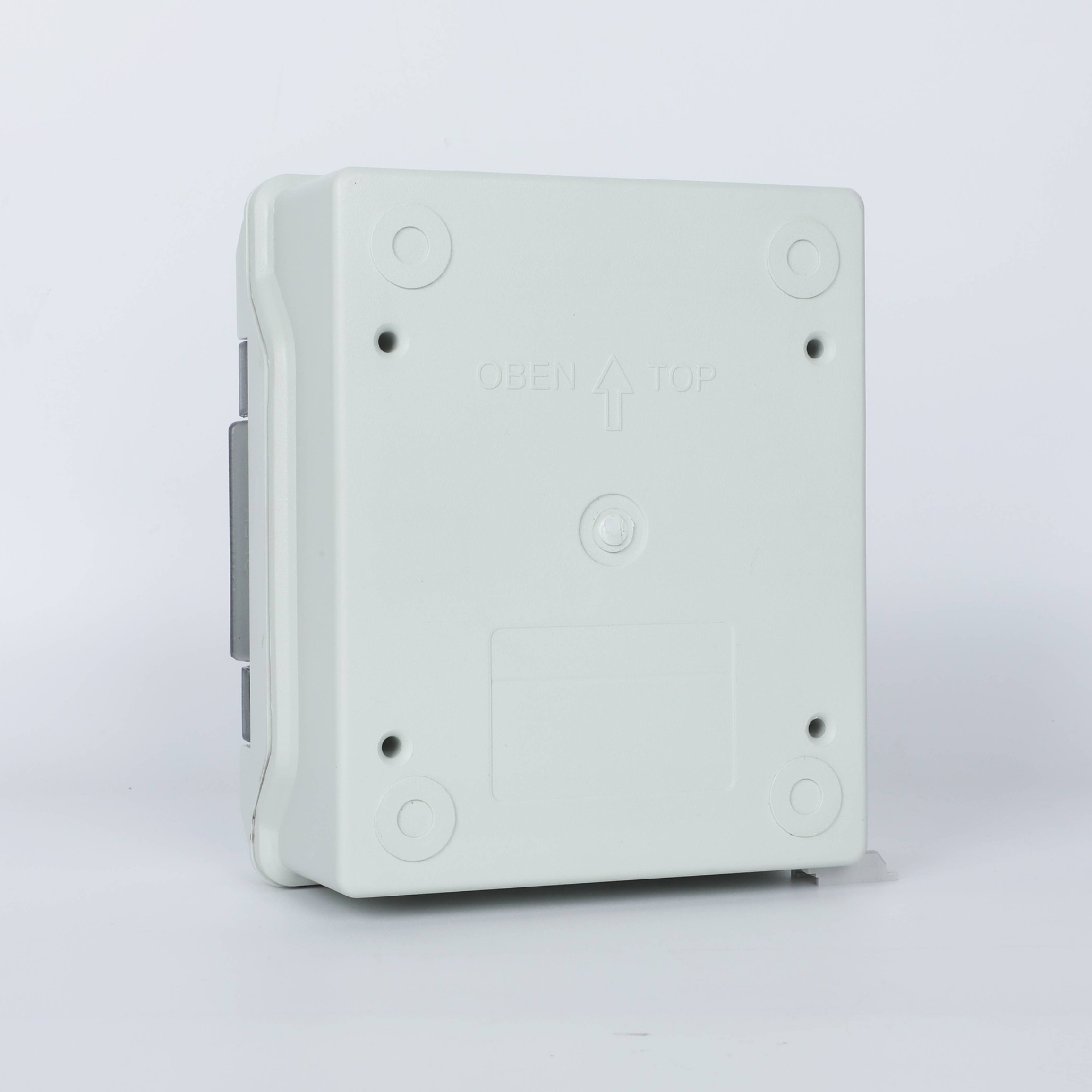

AG, AT, PG, PT wall-mounted electrical enclosures made of impact-resistant polycarbonate or ABS are suitable for harsh, harsh industrial environments.The bottom of the cabinet base is designed with self-tapping screw holes, which makes it easy to assemble and install. The hinge buckle type allows you to install the hinge buckle on either the long or short side. You can also choose a front plate or various other mounting accessories. This series of products can also be used in the solar field and can be used as a combiner box.
| Description | PC (Polycarbonate) | ABS |
| Protection Degree (EN 60529) | IP65 | IP65 |
| Shock resistance (EN 62262) | IK08 | IK08 |
| Temp.Range (short-term) | -40°C~120°C | -40C~80°C |
| Temp.Range(continuous) | -40°C~80°C | -40°C~60°C |
| Insulativity | complete Insulativity | complete Insulativity |
| Color (Opaque-light gray part) | RAL 7035 | RAL 7035 |
| (Transparent - PC cover part) | Clear/smoky grey | Clear/smoky grey |
| hinge/buckle color (PC) | RAL 7035 | RAL 7035 |
| Gaskets | PUR/EPDM | PUR/EPDM |
| Flammability rating | UL94-5V | UL 94HB |
| Burning wire test(IEC 695-2-1) | 960°C | 650°C |
| Nontoxicity | Halogen-free | Halogen-free |
| UV resistance test(UV) | UL 508 720 hours in the aging machine | |
| Chemical resistance | favorable | favorable |
| Model specifications | Dimensions (mm) |
| ME-HPC-4 | 212*107*92 |
| ME-HPC-6 | 200*165*100 |
| ME-HPC-9 | 219*200*100 |
| ME-HPC-12 | 273*230*110 |
| ME-HPC-18 | 381*230*110 |
| ME-HPC-36 | 381*380*110 |
| ME-HPC-54 | 518*307*110 |
